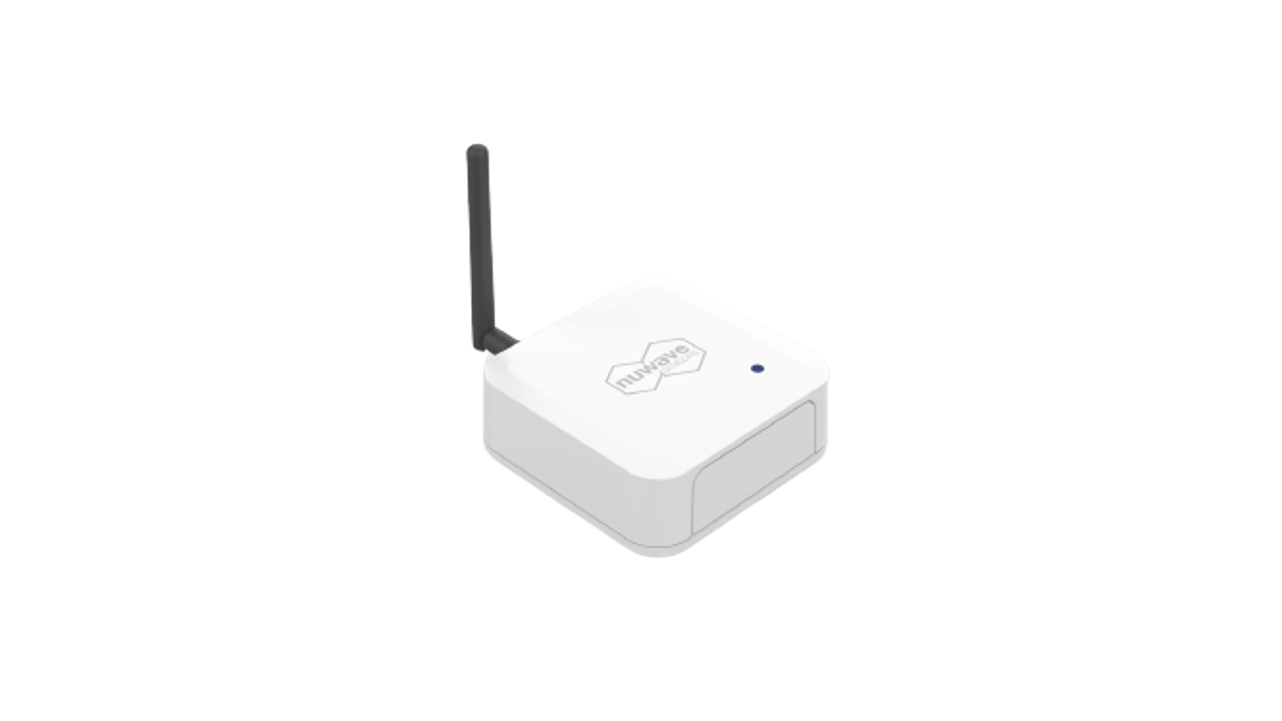

GY36 Wireless Ethernet Gateway
NuWave’s GY36 Ethernet Gateway collects and coordinates all the information from the NuWave Sensor units deployed in the vicinity of the device. The device temporarily buffers the local sensor data before interfacing through existing Ethernet networks for WAN connectivity to NuWave’s centralized cloud server. If the availability of an Ethernet network is limited or restricted, NuWave can supply an optional Ethernet to Cellular converter to allow customers to get their units online regardless of local internal network restrictions.
Compatible Products
- LumAir
- TD40 Particle Counter
- AirSentric WB55
Using the product
The GY36 unit powers on when plugged into the AC/DC adapter supplied with the product. When the device is connected to a DHCP enabled Ethernet port it will connect to the NuWave cloud server automatically. Each unit is preconfigured to operate as the host of a private and secure ZigBee network between the sensor modules and the GY36 gateway. Should the user need to configure the gateway settings, the unit is accessible though on online interface running on a webserver inside the device. This will allow users to change network settings, alter transmission intervals, update the firmware etc.
Specifications:
Performance
| Range | Indoor range up to 30m | Outdoor range 100m |
| Antenna | 2.4GH. 3dB Antenna ariel w/ SMA male | Height 107mm |
| Ethernet | RJ45 10/100 | – |
Environment
| Temperature range | Operating Temperature °C | 0 to 85°C |
| Humidity range | % RH continuous, non-condensing | 5 to 95% |
| Enclosure | IP rating at proper indoor installation | IP30 |
| Weight | Enclosure weight excluding adapters | 165g |
| Certification & Compliance |  | |
Inputs and Outputs
| Input | 100-240V International Adapter | DC 12V /- 10%, 420mA (Supplied) |
| Gateway Power | 55mA @12V | |
| Wireless Outputs | ZigBee, 3G/4G (Optional) | Gateway (supplied), Dongle 3G/4G (optional) |
